Step 1 - Mailing Cells

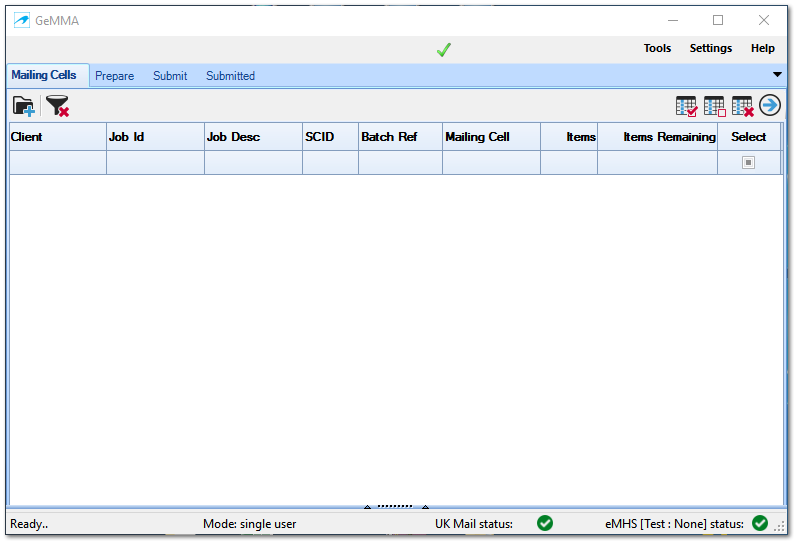

Mailing Cells can be imported in two ways:-

Drag and Drop
Import Mailing Cells browser

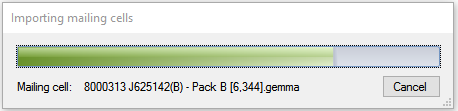

When Mailing Cell(s) are imported a progress bar is displayed:-

During the import the Mailing Cells are validated:-

Mailing Cells must have a gemma file extension.
Mailing Cells must match our XML Schema.
Mailing Cells can not be already imported.

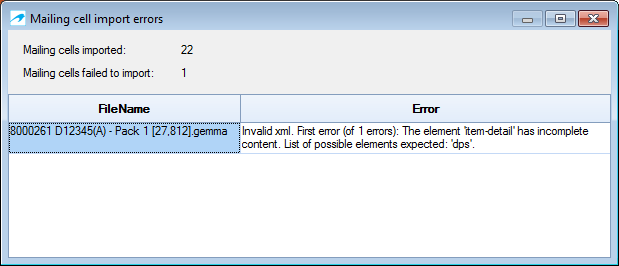

If Mailing Cell(s) fail validation an error is displayed:-

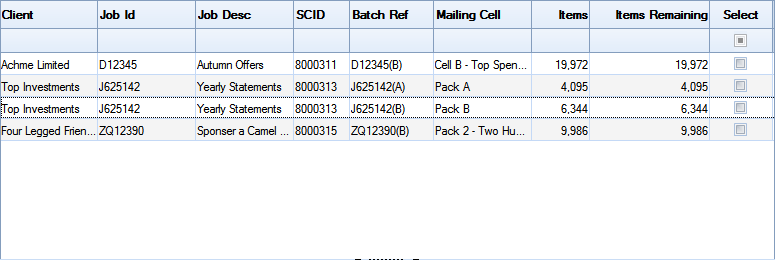

Imported Mailing Cells are displayed in the Mailing Cell Display. Columns can be sorted and filtered, see the Filtering topic.

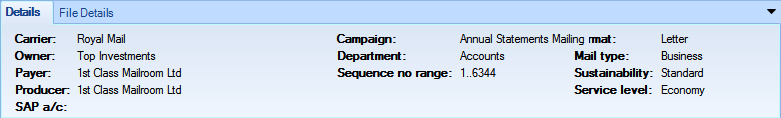

More details can be shown by selecting a row:-

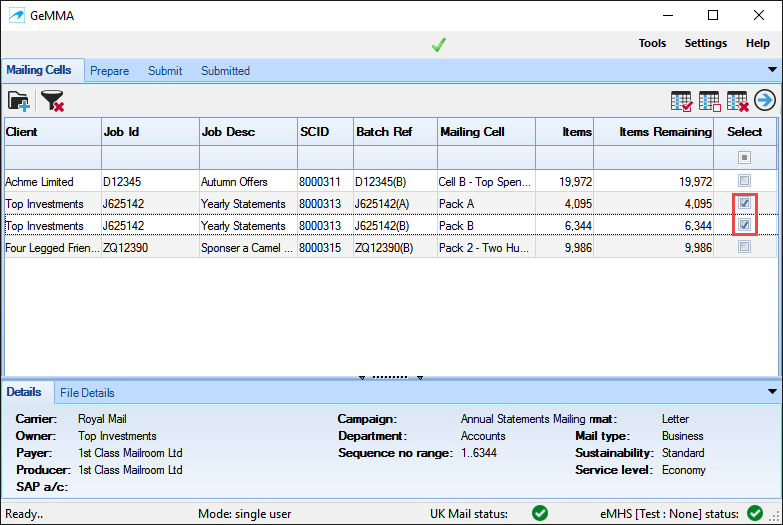

The Select column checkbox is used to select Mailing Cells to work with in association with the Mailing Cell Controls. Below I have selected two Mailing Cells:-

To progress to the Prepare tab use the Move to Prepare Control, when pressed the selected Mailing Cells are removed from the Mailing Cells tab onto the Prepare tab, the UI will also open the Prepare tab.

See the Mailing Cell Controls topic for more info about all the controls available.
