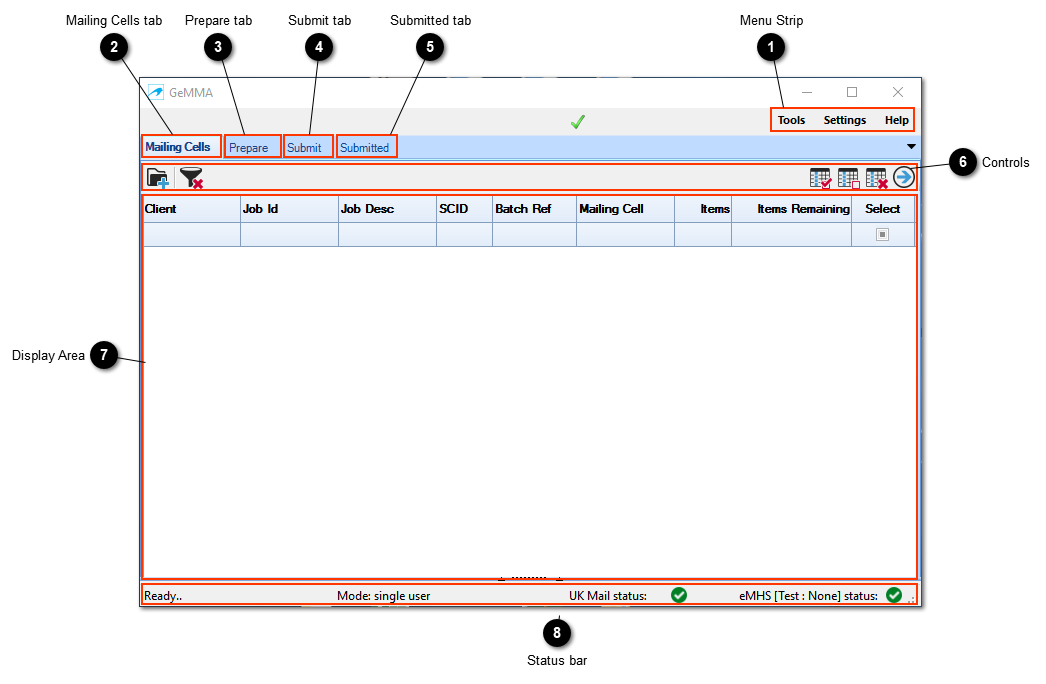

User Interface

User Interface
1

Mailing Cells tab

1. Mailing Cells tab
Displays all Mailing Cells imported into GeMMA that are yet to be progressed.


2

Prepare tab

2. Prepare tab
Displays all Mailing Cells progressed from the Mailing Cell tab.

3

Submit tab

3. Submit tab
Displays all Mailing Cells progressed from the Prepare tab.

4

Submitted tab

4. Submitted tab
Displays all Mailing Cells that have been Submitted to eMHS.

5

Archived tab

5. Archived tab
Displays all Mailing Cells that have been Archived from the Submitted tab.

Archiving of submitted Mailing Cells is controlled by the Archive feature.

6

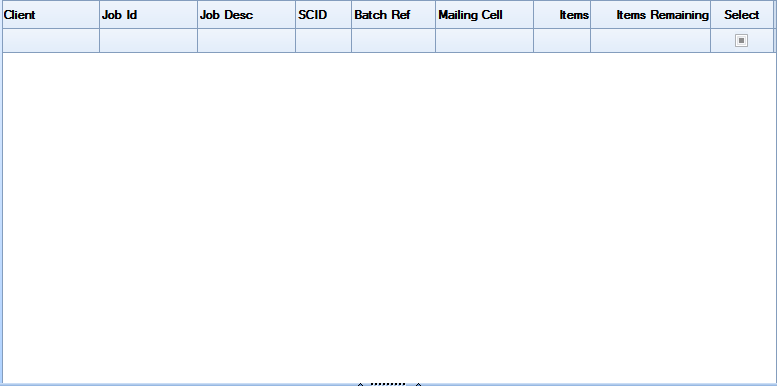

Display Area

6. Display Area

The Display Area shows imported Mailing Cells information. The columns shown is dependant on which tab the UI is focused on.

7

Menu Strip

7. Menu Strip
The Menu Strip contains three categories each of which contain sub-catergories:-


8

Controls

8. Controls
The Controls displayed are dependant on which tab the UI is focused on:-

Mailing Cell Controls
Prepare Controls
Submit Controls
Submitted Controls

9

Status bar

9. Status bar
The Status bar shows the application status as well as the connection status to Royal Mail eMHS and UK Mail web services.
